For Analytical and Small-Scale Preparative Chromatography
Standard Features
- Dual self flushing pump heads with overlapping cams for reduced pulsation
- Pulse damper for reduced dead volume
- Real-time pressure monitoring with upper/lower pressure limits
- Motor stall detector
- Remote 0-10 volt & remote 0-10 kHz flow rate control input
- Autoprime™one button toggles flowrate to maximum for rapid solvent change
- Ruby ball/sapphire seat check valves for consistent performance
- Prime purge valve
- RS-232 serial com port for complete control & status monitoring
- Run/stop inputs (5 volt TTL type)
- Simple front panel key pad controls with LED display
- Autoprime™one button toggles flowrate to maximum for rapid solvent change
- Stainless Steel or PEEK fluid path

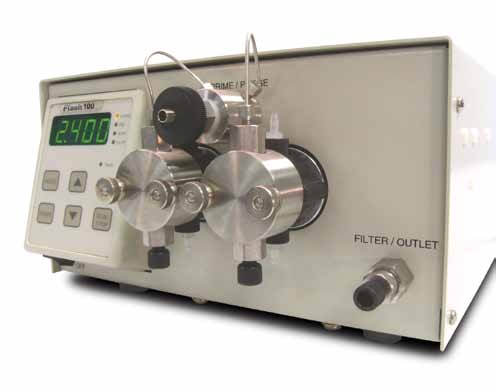

Series 12×6 Pump Specifications
| Flow rates | 0.1 – 36.0 mL/min |
| Maximum Pressure | 6,000 psi (Stainless Steel) 5,000 psi (PEEK) |
| Pulsation | < 2% @ 1 mL/min. and 1,000 psi |
| Pressure Accuracy | ± 2 of full scale pressure |
| Flow Accuracy | ± 2% |
| Flow Precision | 0.5% RSD |
| Controls | RS-232 Serial Com Port for Complete Control & Status Monitoring – Run/Stop Inputs (5 Volt TTL Type) – Remote 0-10 Volt & Remote 0-10 KHz Flow Rate Control Input |
| Dimensions | 5.5” H x 10” W x 17” D (14.0 x 25.4 x 43.2 cm) |
| Weight | 35 lbs. (16 kg) |
Ordering Information
| Description | Part No |
|---|---|
| Series 12×6 Pump, Stainless Steel Self-Flush, 0.001-12 mL/min., User-Selectable Voltage, Pulse Damper w/ Transducer |
D05SFD01 |
| Series 12×6 Pump, PEEK 36 mL/min., Pressure Monitoring, Pulse Damper, and Self-Flush, PEEK |
D05PFD01 |
| Series 12×6 Pump, Stainless Steel (Organic) 36 mL/min., Pressure Monitoring, Pulse Damper, and Self-Flush, PEEK |
D05SFD02 |
