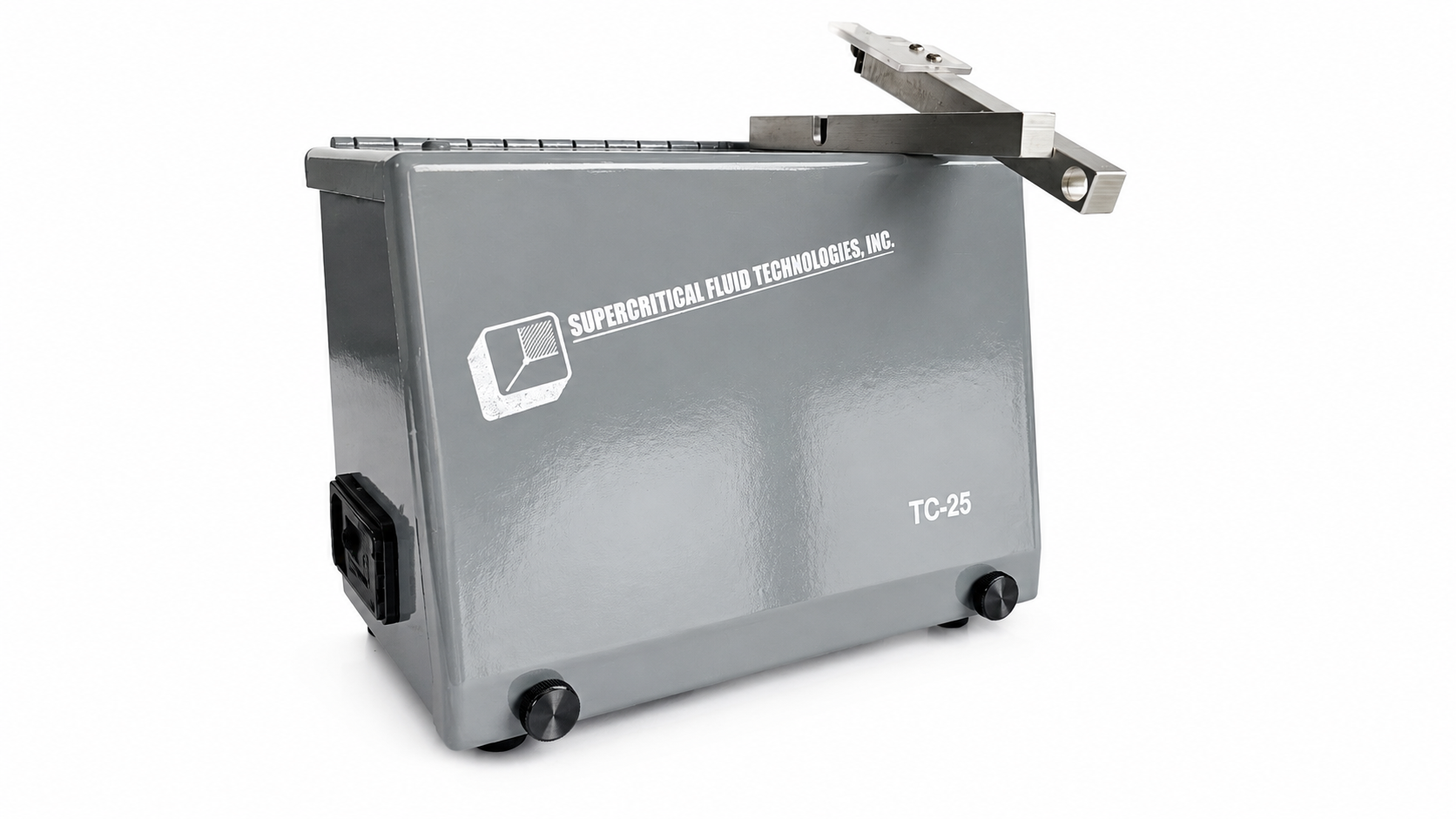

The TC-25 is a high-speed, dry abrasive cut-off machine engineered for light or intermittent duty applications. Housed in a protective cabinet, it provides precise, square cuts on stainless steel tubing, and features an integrated deburring system for clean, ready-to-use results.
Key Features
- Precision-matched motor, wheel, and cutting arm
- Clean and square cuts for small-diameter tubing
- Integrated OD and ID deburring tool
- Safe and enclosed operation
- Compact and durable design
Recommended Use
Ideal for laboratory, prototype, or small-scale production
environments where precision cutting of fine stainless steel tubing
is essential.
Specifications
| Category | Details |
|---|---|
| Model | SFT-TC25 |
| Cutting Method | Dry abrasive cut-off wheel |
| Operation Type | Light / Intermittent duty |
| Tubing Material | Stainless Steel |

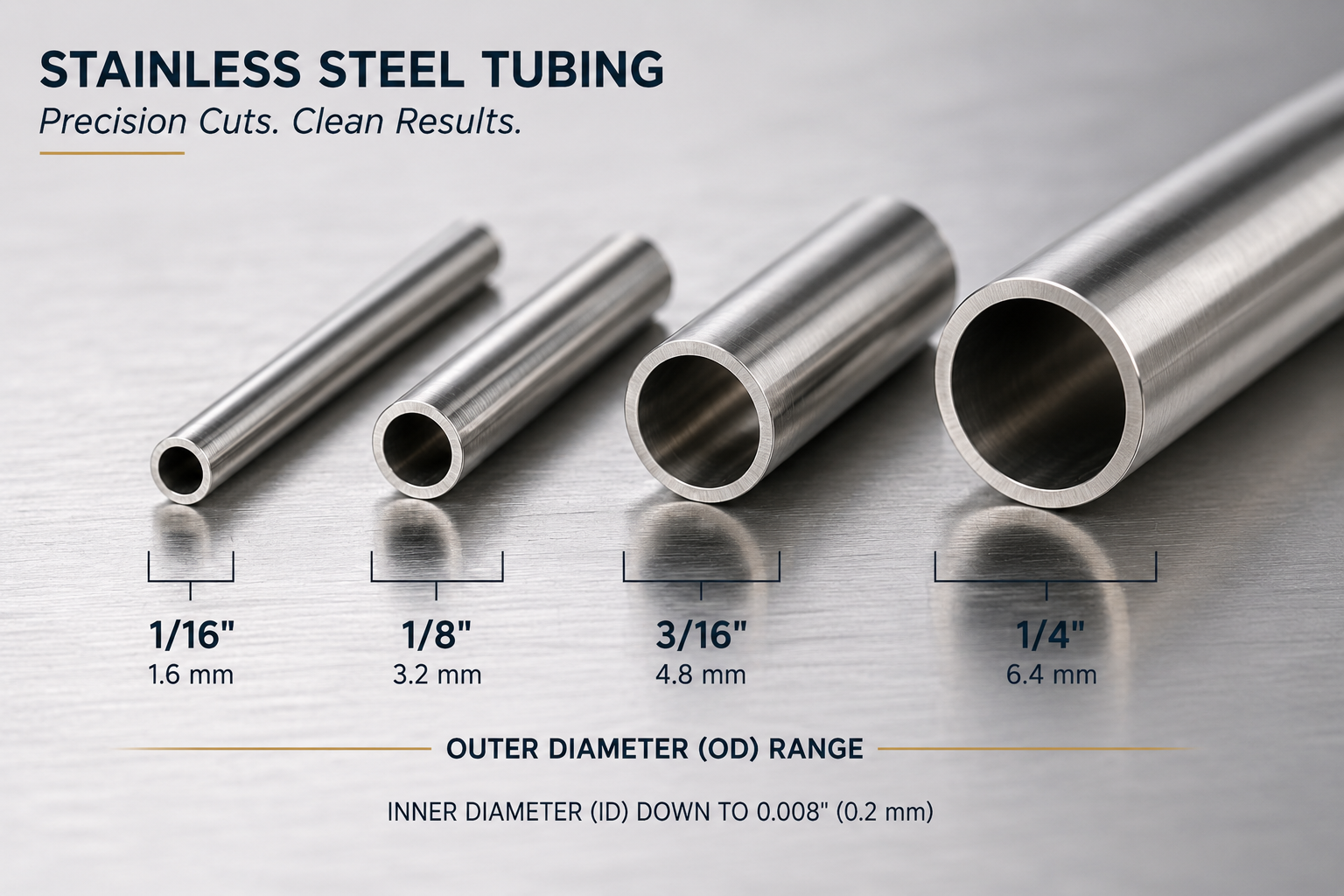

| Outer Diameter (OD) Range | 1/16″, 1/8″, 1/4″ (1.6 mm, 3.2 mm, 6.4 mm) |
| Inner Diameter (ID) Range | Down to 0.008″ (0.2 mm) |
| Motor | High-speed motor (speed matched to cutting system) |
| Cutting Arm | Precision-aligned for square cuts |
| Deburring System | Integrated dressing tool with hard tool-steel cutting edges |
| Protective Enclosure | Fully enclosed cutting cabinet for operator safety |
| Maintenance | Low-maintenance; designed for years of trouble-free operation |
